Analysing Electromagnetic Waves

1. Electromagnetic waves consist of vibration of magnetic field and electric field which are perpendicular to each other.

2. Therefore, Electromagnetic waves are transverse waves.

3. The velocity of electromagnetic waves in vacuum is 3 X 10 (8)(to the power of eight) meter per second.

4. Differences in wavelength between electromagnetic waves producer a spectrum of electromagnetic waves.

Electromagnetic waves sorted starting from High Frequency to the Lowest Frequenct

Gamma rays

X-Rays

Ultraviolet

Visible Light

Infrared

Micro Waves

Radio Waves




Hope you all have an idea :)

Read More »

Electromagnetic Spectrum

When you watch television, listen to the radio or cook something in a microwave oven , you are actually apply the properties of electromagnetic waves. Do you know what is an electromagnetic wave?

Electromagnetic waves are propagating waves that travel in space with both electric and magnetic components. These components oscillate at right angles to each other and to the direction of propagation.

Electromagnetic waves carry energy and momentum which may be given when they interact with matter.

Electromagnetic waves comprise of a series of waves whose frequencies and wavelengths extend over a broad range. Waves in the electromagnetic spectrum vary in size from very long radio waves to very short gamma rays.

Visible light waves are the only electromagnetic waves we can see. We see these waves as the colours of the rainbow. Each colour has a different wavelength. Red has the longest wavelength and violet has the shortest wavelength. When all the waves are seen together, they produce white light.

When white light shines through a prism or through water vapour, the white light is broken apart into the colours of the visible light spectrum.

The electromagnetic spectrum is the range of frequencies and wavelengths over which electromagnetic waves are propagated.

Sources of Electromagnetic Waves.

Matter is made up of elementary particles called atoms.

Every atom has a nucleus at its centre which is surrounded by orbiting electrons.

Electrons are negatively charged particles and they circle around the nucleus in orbits, each of which is at a specific energy level. When a charged electron travels from an orbit with a particular energy level to one of a lower energy level, electromagnetic waves are emitted.

Electromagnetic waves are also produced when a charged particle (electron or nucleus) oscillates.

Properties of electromagnetic waves

Electromagnetic waves are:

a. Transverse waves

b. Do not require a medium to propagate and can travel in a vacuum.

c. The magnetic and electric field components of the wave oscillate at right angles to each other and to the direction of propagation of the wave.

d. Obey the wave equation c = fλ. c is the velocity of light, f is the frequency of the wave and the λ is the wavelength.

e. In a vacuum , the waves travel at the speed of light c = 3 X 10^8 ms-1.

f. Undergo the same phenomena as light: reflection, refraction, diffraction and interference.

g. The waves are electrically neutral.

h. Show characteristics of polarization.

i. Energy is transferred by the waves.

In a vacuum, c is a constant for all elecgromagnetic waves The formula c = fλ shows that the frequency f is inversely proportional to the wavelength λ. (f = c/λ)

The velocities of an electromagnetic wave in other media are different from its velocity in vacuum.

Detrimental effects of electromagnetic spectrum.

The invisible waves or radiation that are emitted from power lines, cellular phones, radio antenna, could potentially be harmful to our health.

The detrimental effects of excessive exposure of the human body to electromagnetic waves of increasing frequencies:

a. Radio waves: harm body cells, prevalence of migraine, headache disorders.

b. Microwaves: internal heating of body tissue

c. Infrared: skin burns

d. Visible light: increased rates of premature skin aging and skin cancer

e. Ultraviolet: damage to surface cells (including skin cancer) and blindness.

f. X-rays: damage to cells.

g. Gamma rays: cancer, mutation

Read More »

Analysing Sound Waves

1. Sounds are mechanical waves. They are caused by vibrating objects. Hence, all vibrating objects produce sound. As an example: The strings of a guitar, the skin of a drum and a tuning fork vibrate to produce sound.


2. By using a loudspeaker as an example,  the vibrating cone of a loudspeaker produces sound by vibration.

3. Its vibrating diaphragm is continually compressing and stretching the air next to it.

4. This produces a series of compression and rarefaction travel through the air away from the loudspeaker.

5. Compression is a region of increased pressure and rarefaction is region of decreased pressure. The resulting succession of compression and rarefaction makes up the sound waves.



6. Sound wave is longitudinal in nature because the air molecules vibrate in a direction which is parallel to the direction of propagation is essentially due to the vibration of molecules of its medium.

7. Compression and rarefaction need a material which can be compressed and stretched. This explains why we do not hear any sound from the outer space which mainly consists of vacuum.

Amplitude and Frequency of Sound Waves

1. The amplitude of sound waves depends on its loudness. The louder the sound, the bigger is its amplitude.

2. The frequency of sound waves depends on its pitch. The higher the pitch of the sound, the higher is its frequency.

Applications of sound waves

1. Sound can be generated at a wide range of frequency.

2. Sound waves generated between 20 Hz and 20 kHz can be heard by normal human ears and are known as audio waves.

3. Those below 20 Hz are called infrasound and those above 20 kHz are known as ultrasound.

4. A bat can navigate in complete darkness by emitting very high-pitched sound waves in the ultrasonic range. When the waves hit a nearby object, they are reflected and received by the bat. The time lag between the emission of the sound waves and sensation of the reflected waves helps  the bat to estimate the position of the object accurately. The bat then adjust its direction to avoid knocking the object.

5. Dolphins use ultrasonic frequency of about 150 kHz for communication and navigation.

6. Ultrasonic rulers in ships use ultrasonic echoes to measure distance.

7. High intensity ultrasonic shockwaves can be used to break kidney stones.

8. Opticians and goldsmiths use ultrasonic cleaner to clean spectacles, jewellery and ornaments. The water used for the cleaning purpose is vibrated by ultrasound. The vibrations shake off dirt attached to these objects.

9. Dentists also use ultrasonic beams to vibrate and shake off dirt and plaque off the the teeth of patients.

Read More »

Speed of Sound, Loudness and Amplitude of Sound

Speed of Sound

1. The speed of sound,v, in a medium can be defined as v = fλ, where λ is the wavelength and f is the frequency. The SI units of v is ms-1, f is Hz and λ is  m (metre).

2. The speed of sound in solid is greater than in liquid, and the speed of sound in liquid is greater than in gas.

3. The speed of sound is unaffected by pressure. As an example, iIf the atmospheric pressure changes, the speed of sound in air remains constant.

4. The speed of sound increases with temperature. At the peak of high mountains, the speed of sound is less than that at sea level. This is not due to the lower pressures but because of the lower temperatures at the peak of mountains.

Loudness and amplitude of sound

1. The loudness of sound is considered to be high or low according to the hearing ability of a person.

2. Loudness is influenced by the amplitude of the sound wave.

3. Amplitude has several definitions.  Some of them are:

Amplitude is

• a measurement from the lowest point that the wave hits to the highest point the wave hits.
• a measurement of the top half of the wave.
• a measurement of the distance between two nearest peaks or two nearest troughs.
• a measurement of the bottom half of the wave.

Pitch and Frequency of Sound


1. The pitch of sound or a musical note is an indication of how high or how low the sound is. Is is a subjective judgement which varies with different individuals.

2. The pitch of a sound is determined by its frequency: a high pitch corresponds to a high frequency.

3. Frequency is how many oscillations a wave complete in a given period of time. Hence you can see that high frequency waves are thinner than low frequency waves because more oscillations are made in the high frequency waves as compared to the low frequency waves within the same period of time.

Read More »

Damping and Resonance of Waves

Displacement –time and Displacement –distance graphs.

Wave motion occurs because of the vibration of particles from their resting position.

We can show the displacement of particle (from its rest position) at different times by plotting a DISPLACEMENT-TIME graph.

We can show the displacements of particles of the wave at a certain time by plotting a DISPLACEMENT-DISTANCE graph.


The relationship between speed, wavelength and frequency.

Frequency (f)= Velocity (v) / Wavelength (λ)
v = f x λ

Damping in an oscillating system

Any motion that repeats itself in equal intervals of time is called a PERIODIC MOTION.

If a particle in a periodic motion moves back and forth over the same path, we call the motion OSCILLATORY or VIBRATORY.

Many of these oscillating bodies do not move back and forth between precise time fixed limits because frictional forces DISSIPATE the energy of the motion. Thus a pendulum stops swinging after some time.

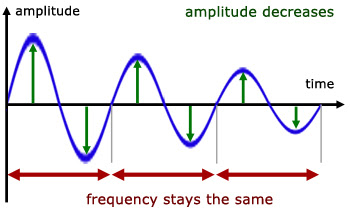

The amplitude of oscillation of the simple pendulum will gradually decrease and become zero when the oscillation stops.

The decrease of in the amplitude of an oscillating system is called damping.

Two types of damping:
1. External damping: loss of energy to overcome frictional forces or air resistance.
2. Internal damping: loss of energy due to the extension and compression of the molecules in the system.

Damping in an oscillating system causes the amplitude and energy of the system to DECREASE but frequency DOES NOT change.

We CANNOT eliminate frictional force from the periodic motion of an object BUT we can cancel out its damping effect by feeding energy into the oscillating system so as to COMPENSATE for the energy dissipated by the frictional force.

For Example, the oscillating pendulum in a pendulum clock uses energy derived from the fall of a weight pulling a chain in the clock to supply external energy.

Resonance In An Oscillating System

When a system oscillates there is a loss of energy due to damping.
If the loss of energy is replaced by an external force of the same frequency, the system will continue to oscillate and may reach a bigger amplitude.

The external force supplies energy to a system, such a motion is called a forced oscillation.

Natural frequency is the frequency of a system which oscillates freely without the action of an external force.

RESONANCE occurs when a system is made to oscillate at a frequency EQUIVALENT at a frequency to its natural frequency by an external force. The resonating system oscillates at its MAXIMUM AMPLITUDE.

Here Resonance 1(R1) is more than Resonance 2 (R2)

The characteristics of resonance can be demonstrated with a Barton’s pendulum system.





Some effects of resonance observed in daily life:

The tuner in the radio or TV enables you to select programmes you are interested in .The circuit in the tuner is adjusted until resonance is achieved, at the frequency transmitted by a particular station selected. Hence a strong electrical signal produced.

The loudness of music produced by musical instruments such as the trumpet and flute is the result of resonance in the air.

The effect of resonance can also cause damage. For example, a bridge can collapse when the amplitude of its vibration increases as a result of resonance. aka when it vibrates at its natural frequency.

Read More »

Analysing Interference of Waves

Principle of Superposition

1. The principle of superposition states that at any instant or moment, the wave displacement of the combined motion of any number of interacting waves at a point is the sum of the displacements off all the component waves at that point.

2. a + a = 2a

a + -a = 0

-a + -a = -2a

Interference of Waves

1. Interference is the superposition of two waves originating from two coherent sources. Sources which are coherent produce waves of the same frequency,f, amplitude,a, and are in phase.

2. The superposition of two waves emitted from coherent sources gives either constructive or destructive interference.

3. Constructive interference occurs when the crests or throughs of both waves coincide to produce a wave with crests and troughs of maximum amplitude.


4. Destructive interference occurs when the crest of one wave coincides with the trough of the other wave, thus cancelling each other with the result that the resultant amplitude is zero.

5. An antinode is a point where a constructive interference occurs, whereas a node is a point where destructive interference occurs. The antinodal lines join all antinodes and the nodal line joins all nodes.

Relationship between lambda, a, x and D (will be discussed later)

Interference of Light waves

1. Waves emitted from two coherent sources have the same frequency,f or wavelength and in phase.



2. Light emitted by a single source of consists of waves which extend over a wide range of wavelengths and are not in phase. because of this, it is difficult to have two sources of light which are coherent.

3. In 1801, Thomas Young produced two coherent light sources in his experiment now referred to as Young's double slit experiment.

a) Yellow light emitted by a sodium-vapour lamp has a very narrow frequency band. for all its practical purposes, it can be considered as a monochromatic light which is light of only one frequency or wavelength.

b) Slits s1 and s2 give rise to two coherent light sources since the light passing through them are from the same monochromatic light, the sodium vapour light.

c) Interference occurs as a result of the superposition of the two light waves originating from s1 and s2. A pattern consisting of a series of parallel and alternating bright and dark fringes is formed.

d) The bright fringes are the region where constructive interference occurs, whereas the dark fringes are regions of destructive interference.

Read More »

Analysing Diffraction of Waves

1. Diffraction of waves is a phenomenon in which waves spread out as they pass through an aperture or round a small obstacle.

2. The effect of diffraction is obvious only if

a) the size of the aperture or obstacle is small enough.
b) the wavelength is large enough

3 Characteristics of diffracted waves:

a) Frequency, wavelength and speed of waves do not change.
b) Changes in the direction of propagation and the pattern of the wave.

Diffraction of Light

1. Light is diffracted if it passes through a narrow slit comparable in size to its wavelength.
However, the effect is not obvious as the size of the slit increases. This because the wave-lengths of light are very short.

2. Diffraction of light is hardly noticeable compared with diffraction of sound waves and water waves because the wavelength of light is very short or small (approx: 10-7 m)

3. Light waves will be diffracted if

a) Light is propagated through a pin hole or a tiny slit where its size is similar to that of the light wavelength (around one hundredth of a millimetre or less)

b) the light source is monochromatic, i.e. light of one colour, and therefore one wavelength only.

Read More »

Analysing Refraction of Waves

Any type of wave can be refracted, refracted is a change in direction. Refraction occurs when the speed of a wave changes, as it moves from one medium to another.

Refraction of Plane Water Waves

1. Water waves undergo refraction (bending) when its speed changes. Refraction is accompanied by a change in speed and wavelength of the waves.

Source: http://www.school-for-champions.com/science/images/waves_obstacles_refraction.gif

2. Water waves travel faster (with higher velocity, v) on the surface of deep water then they do on shallow water. Thus, if water waves are passing from deep into shallow water, they also will slow down. This decrease in speed will also be accompanied by a decrease in wavelength. The change of speed of the wave causes refraction.

3. After refraction, the wave has the same frequency,but a different speed, wavelength and direction.

4. When a water wave travels from deep water into shallow water, the wave is refracted towards normal. Conversely, the wave is refracted away from the normal when the water wave travels from shallow water into deep water.

Refraction of Light

1. A swimming pool seems much shallower than it actually is; a spoon appears bent when part of it is in water and a boy's legs look shorter when immersed in pool. All these effects are due to the refraction of light.

2. When a ray propagates from one medium to an optically dense medium, the ray refracts towards the normal. Conversely, a ray propagating from one medium to an optically less dense medium is refracted away from the normal.

3. The speed of light decreases as it propagates in the glass block, causing it to alter the direction of propagation. Since the incident ray and the refracted ray are from the same source, the frequency remains the same. Hence, the wavelength of the ray in the glass is shorter than the ray in the air.

Source: http://micro.magnet.fsu.edu/optics/lightandcolor/images/refractionfigure1.jpg

Refraction of Sound waves

1. The sound of a moving train at a distance is clearer at night than that in the day time. This is due to the effects of the refraction of sound waves.

2. At night-time, the layers of air close to the ground are cooler than the layers further from the ground.

3. Sound travels at a slower speed in cold air. As a result, the sound waves are refracted in the path of a curve (due to total internal reflection) towards the ground instead of disappearing into the upper layers of the air.

Read More »
